1U 800G Server
Product overview
Engineered for next-generation workloads, this 1U high-density server delivers unmatched performance with 32 native 100 GbE optical ports, making it a powerful 800G solution for Cybersecurity, High-Performance Computing (HPC), and Advanced Networking.
Featuring four FPGA accelerator boards (XpressGXS10-FH8xxG) powered by altera Stratix® 10 GX 2.8MLE, and dual-socket 4th Gen AMD EPYC™ CPUs, this server combines massive compute power with hardware-level acceleration—all in a compact 1U form factor.
Fully compliant with CE, FCC, and CSA, it’s built for demanding data-intensive applications that require speed, flexibility, and reliability.
Benefits & features
- 1U compact full turnkey server, optimized for FPGA boards
- 32 ports 100GbE (QSFP28)
- 4x FPGA boards XpressGXS10-FH8xxG
- Designed for Cybersecurity, HPC, Networking

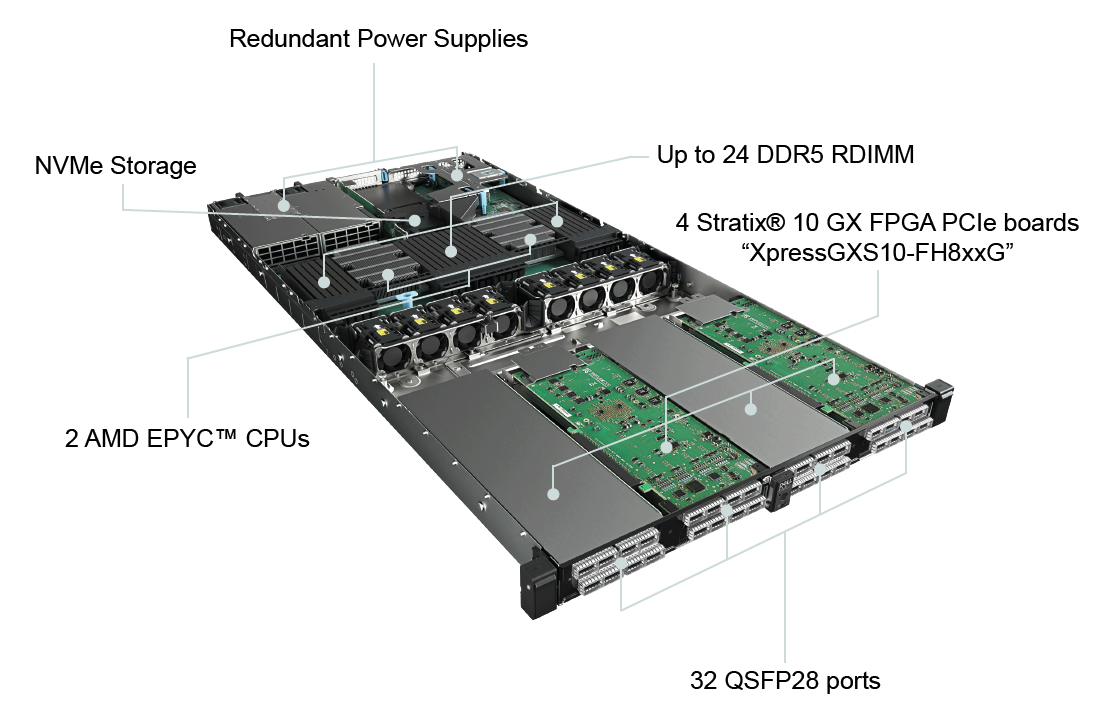

Diagrams
Specifications of our 1U 800G Server:
Tech specs
Processor
- 2x AMD EPYC™ 9124 CPU
- 16-core/32-thread @ 3.0GHz~3.60GHz -64MB of cache L3 - TDP 200W
Memory
- 2x 16GB DDR5 RDIMM 4800MT/s (different spec on request, up to 1.5 TB)
Power
- 2200W hot-plug, Redundant power supply unit
Storage and monitoring
- SSD PM9A3 960GB M.2 NVMe PCIe 4.0 DWPD: 1
- IPMI Controller (monitoring)
- 1x Raid Card for 2 ports M.2 NVMe/SATA PCIe
Supported operating system
- Linux Debian11 Bullseye (Kernel version 5.10.0) or newer
Server versions
- 32x ports (up to 100Gbps) with QSFP28
- Other configurations on request
SDK & Toolkit
The reflex ces Toolkit is provided with every board purchased, to be a link between the reflex ces board and the host system. It is a suite of software development tools, including drivers, libraries, utilities and example projects.
XpressGXS10-FH8xxG FPGA Board Specifications
- Stratix® 10 GX 2.8MLE FPGA
- PCIe Gen3 x16
- 4x banks DDR4, 32GByte total, x72bit, 2400MT/s
- Single-slot passive heatsink
- Power dissipation : Up to 180W per board
- 4x QSFP-DD interface used in QSFP28 mode
- Plugged to extension board with 4x QSFP28 ports
Warranty and support
- 1 year warranty
- Online support at support.reflexces.com
Compliances
- CE
- FCC
- CSA
Deliverables
Deliverables
- Board Support Package (Documentation, HDL test Designs)
Ordering information
RXC1U800G-SVER00T
