PCIe boards based on Xilinx® Virtex® UltraScale+™

Our PCIe boards are based on Xilinx® Virtex® UltraScale+™ FPGA. FPGA technology (field programmable gate array) is known to offer high-capacity logic and memory storage, while maintaining a module size suitable for embedded solutions.
Xilinx® Virtex® UltraScale+™ FPGAs provide the highest performance and integration capabilities in a 14 nm/16 nm FinFET node. In addition, they offer the highest transceiver bandwidth, highest DSP count, and highest on-chip and in-package memory available in the UltraScale architecture. Virtex UltraScale+ FPGAs also provide numerous power options that deliver the optimum balance between the required system performance and the smallest power envelope.
The Peripheral Component Interconnect Express, commonly known as PCI Express, is a high-speed serial computer expansion bus standard. Added to a Xilinx® Virtex® UltraScale+™ FPGA, it makes our boards quick and efficient.

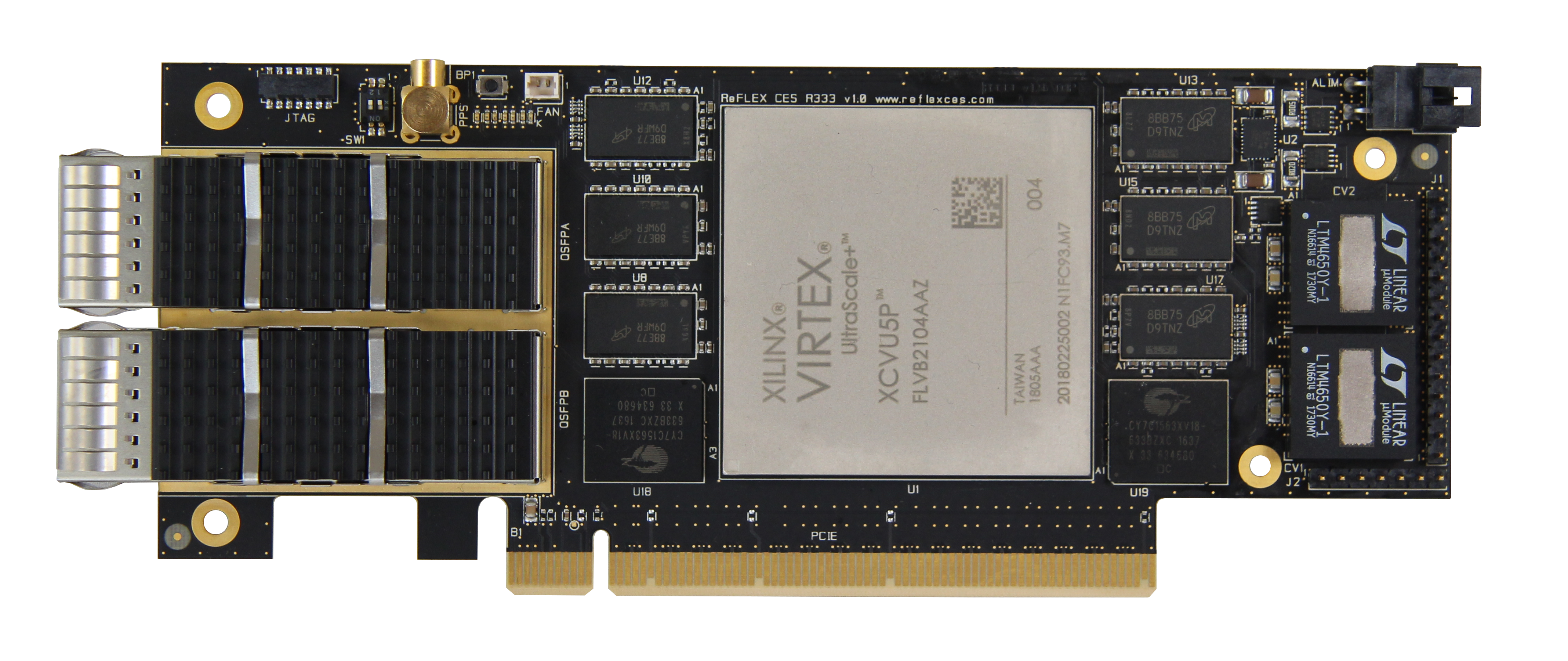

Our wide range of boards is designed to meet all your needs in terms of logic density, memory size, power, interfaces, and more. Our Xilinx® Virtex® UltraScale+™ PCIe boards are developed with Xilinx® FPGAs: Virtex® UltraScale+™ VU5P or Virtex® UltraScale+™ VU9P.

Our sales team is available to advise you on the best solution according to your needs. Our FPGA boards are specially sized and full of features based on customer requirements.

Xilinx® Virtex® UltraScale+™ PCIe board benefits

Xilinx® Virtex® UltraScale+™ PCIe boards offer a reduced time to market thanks to the development environment: firmware (FPGA test designs), hardware (board and starter board, kitting), and software codes.

With their low-profile form factor, our boards are designed to fit into various servers and chassis from the market, as well as the custom rack systems of embedded applications.

We designed the boards to ensure that their power consumption (and therefore power solutions) are optimized. The passive cooling system is well understood as being the best for integration in a server or systems.

The Xilinx® Virtex® UltraScale+™ PCIe boards are ideal for a wide range of applications and especially for computationally intensive applications such as HPC, finance, and networking applications

Xilinx® Virtex® UltraScale+™ PCIe board main specifications

REFLEX CES’s Xilinx® Virtex® UltraScale+™ PCIe boards offer a range of interfaces according to your requirements.

Our Xilinx® Virtex® UltraScale+™ PCIe boards offer primary interfaces, such as the PCB, DDR4, QDR2+ memories, QSFP28, PCIe Gen3, Eeprom, switches, and more.

We also deliver all the relevant design rules, block diagrams, datasheets, and user guides, to develop the customer application carrier board (we can also develop it based on customer specifications).

Our Xilinx® Virtex® UltraScale+™ PCIe boards can also be customized according to customer requirements.

We provide online technical support, schematics, and a one-year warranty on the hardware (for debugging and other issues).
